GTM GTS1300E
Description
Model: GTS1300E (Electric & Recoil Start)

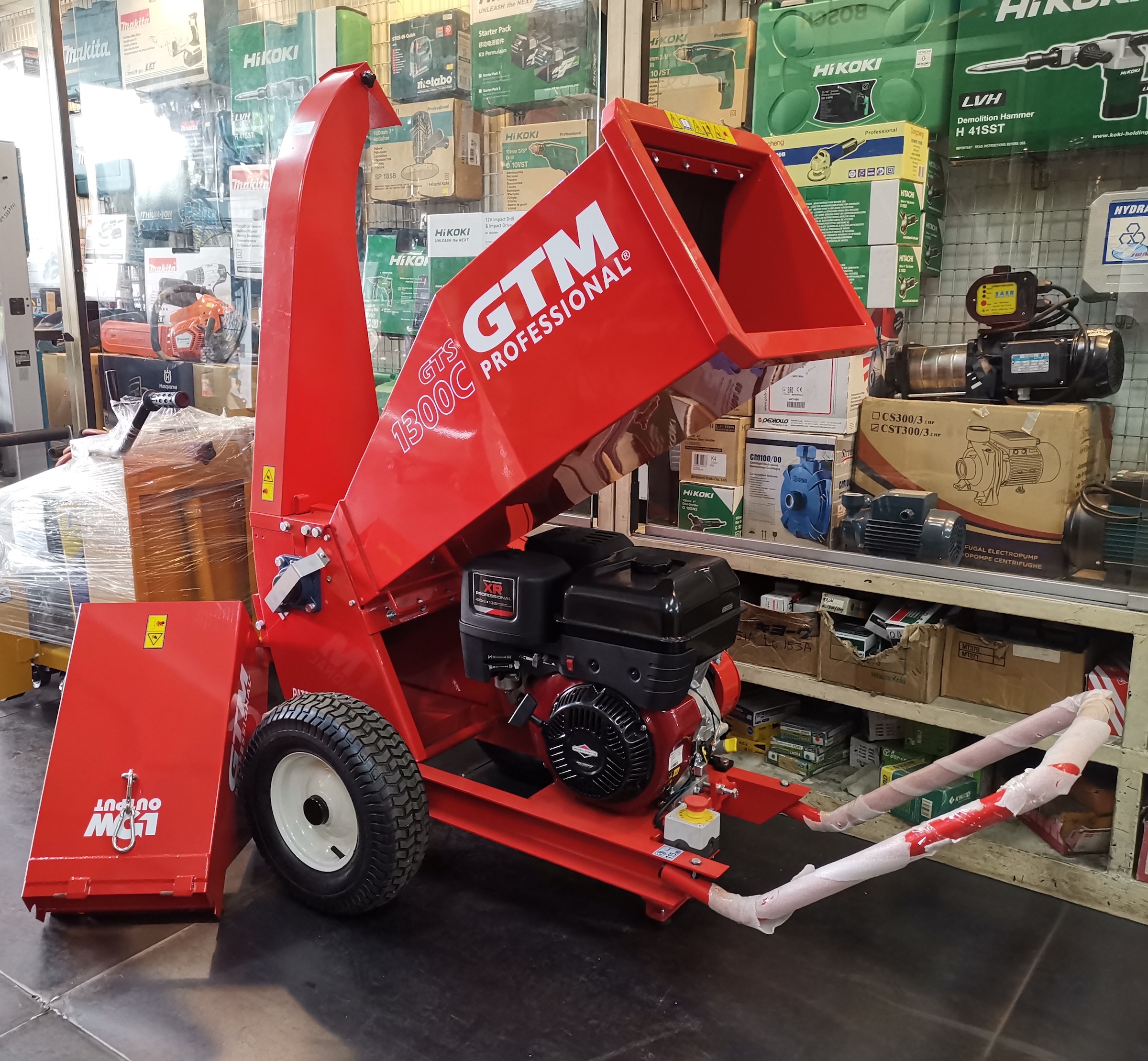

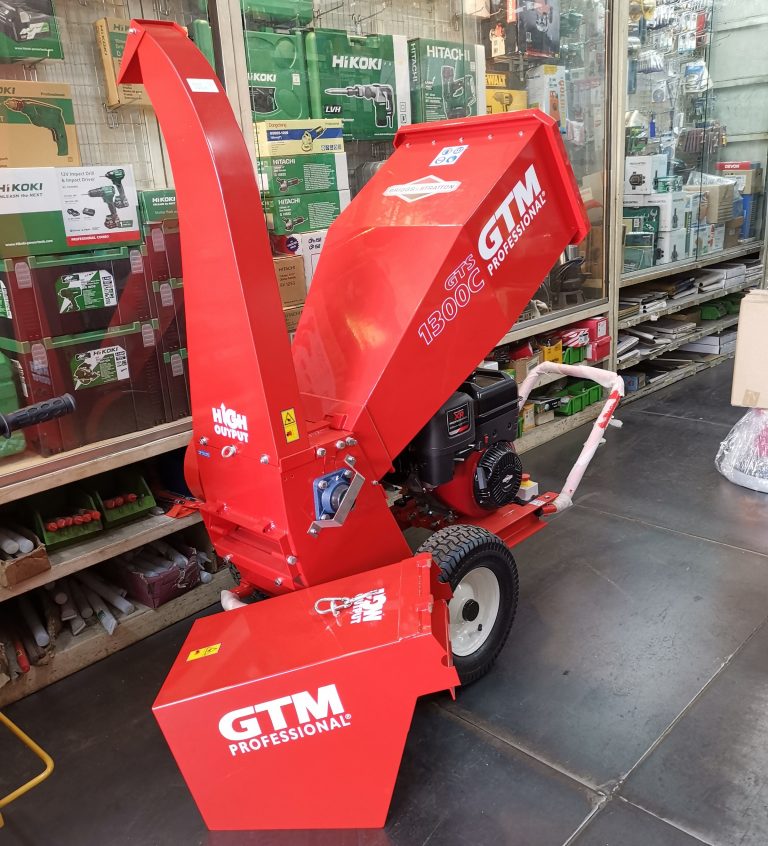

GTM GTS1300E is a powerful wood chipper machine designed to process a wide variety of organic materials. Equipped with a Briggs & Stratton 13.5HP petrol engine, it delivers high chipping efficiency and versatile output options for agricultural, landscaping, and waste management applications.

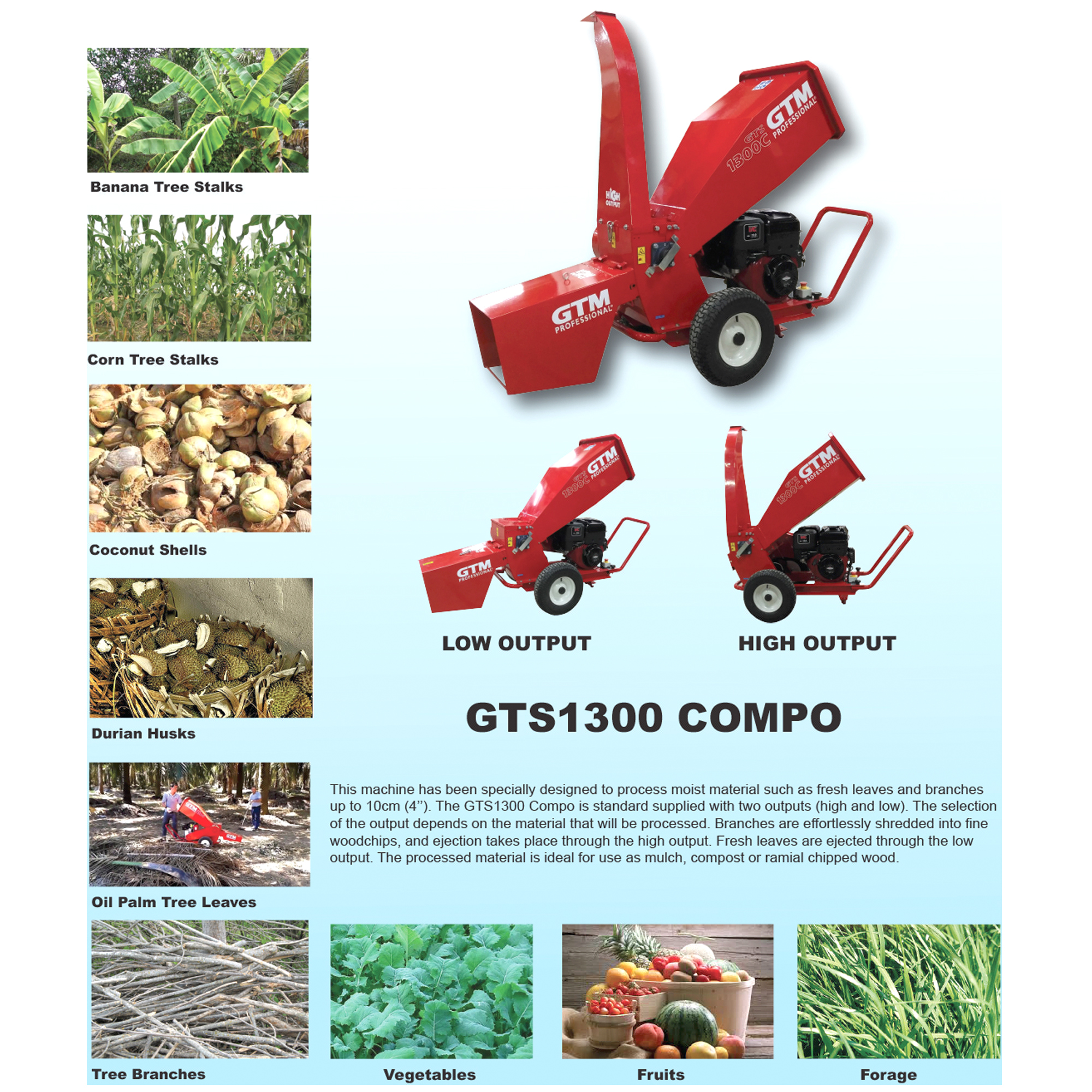

Applications
- Fresh leaves
- Branches up to 100mm (4")
- Corn tree stalks
- Coconut shells
- Durian husks
- Oil palm leaves
- Tree branches
- Vegetables
- Fruits
- Forage materials
- Banana tree stalks
Features
- Electric start and recoil (coil) start system for convenient operation.
- Supplied with two discharge outputs as standard:
- High Output: Produces wood chips.
- Low Output: Suitable for fresh leaves and softer materials.

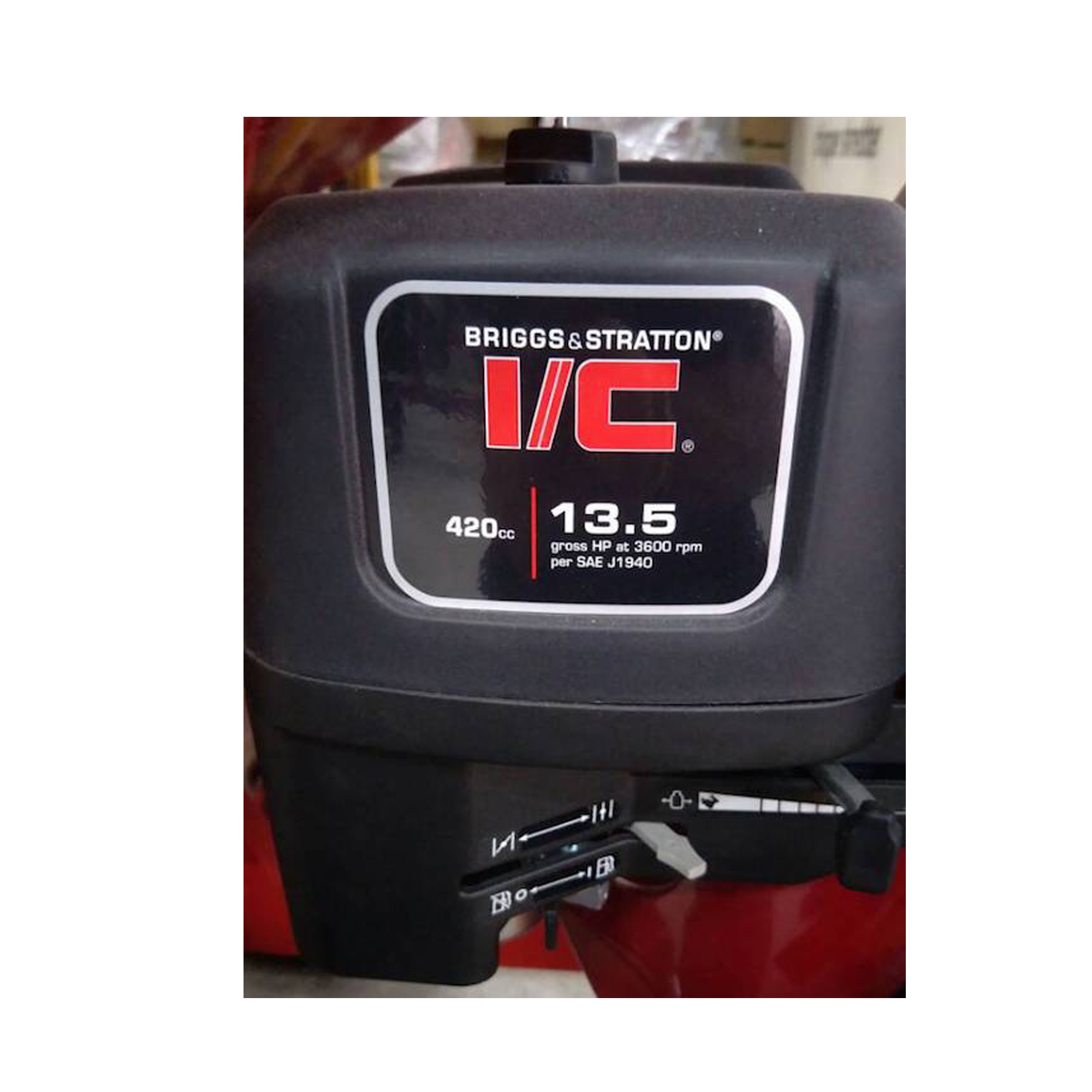

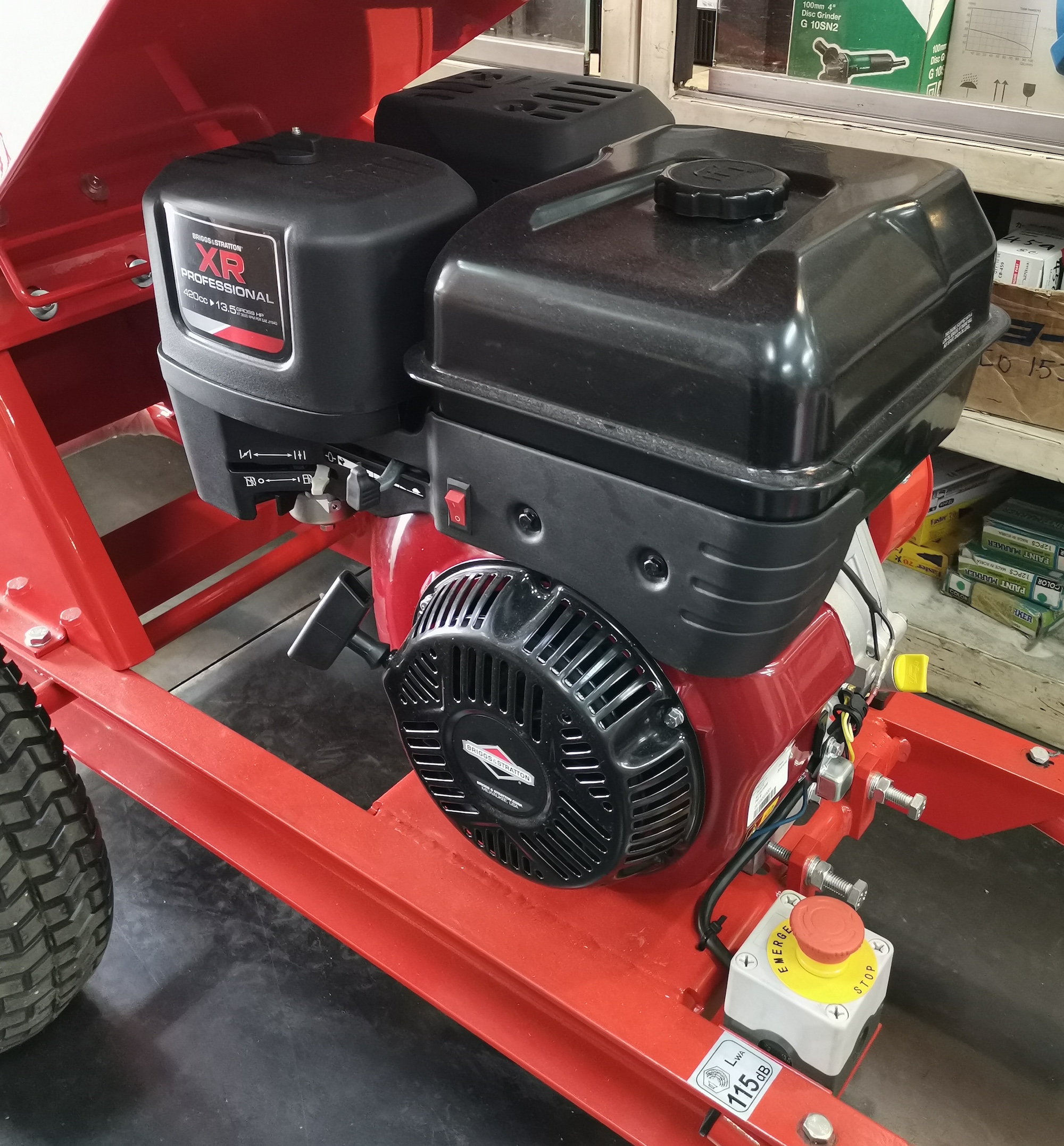

- Powered by a 13.5HP Briggs & Stratton air-cooled petrol engine.
- Fast and efficient chipping system featuring a rotor with two blades mounted on a metal drum and a counter blade mounted on the chassis.
- Designed for handling a broad range of organic waste materials.
Specifications
| Engine Model | Briggs & Stratton I/C420 |
| Engine Type | Air-Cooled, OHV |
| Displacement | 420cc (13.5HP) |
| Starting Method | Electric Start & Recoil Start |
| Fuel Tank Capacity | 6.6L |
| Engine Oil Tank Capacity | 1.1L |
| Maximum Branch Diameter | 100mm (4") |
| Input Height | 1150mm (45.3") |
| Input Dimensions | 340mm × 420mm (13.4" × 16.5") |
| Output Height | High: 1400mm (55.1") Low: 0 - 400mm (0 - 15.7") |
| Wheel Diameter | 400mm |
| Deflector | 85° Adjustable |
| Safety Features | Emergency Switch, Rotor Blocking System |
| Transmission | Double V-Belts |

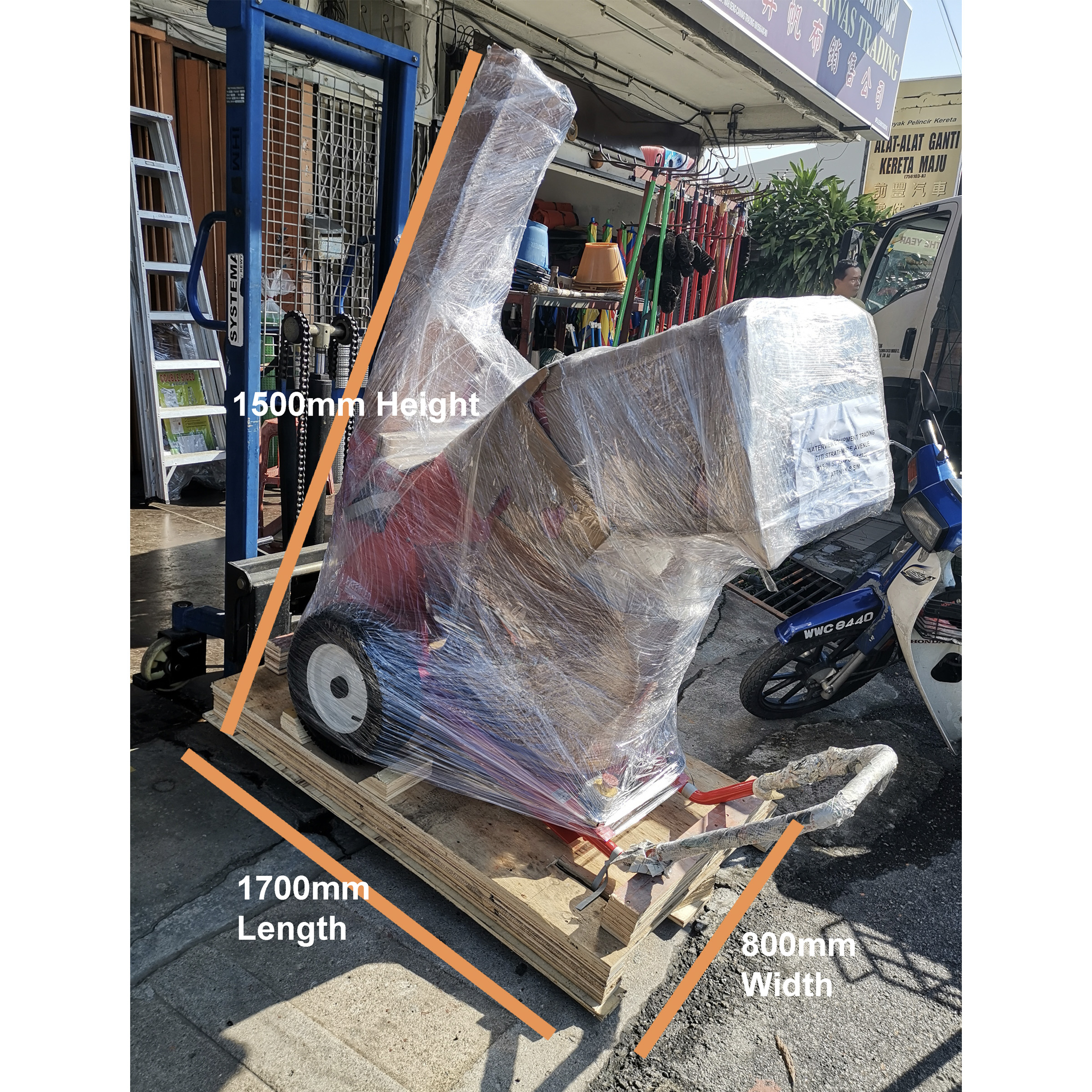

| Dimensions (L × W × H) | 1900mm × 780mm × 1500mm |
| Weight | 202kg |
Accessories Included
- 12V Battery
